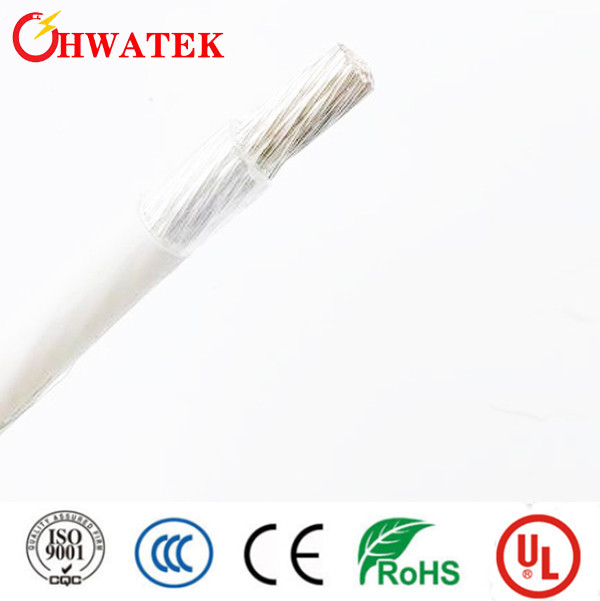

XLPE Insulation PVC Jacket UL 3386 UV Resistance Double sheath 105℃ 600V Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581
Product character:
Excellent insulation performance, stable chemical properties
Pass FT2
UV resistance , anti-acid and environmental protection etc.
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:136±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Conductor | | | Bare Copper Stranded |
| Cross section | | | | 4AWG | |
| Construction | | | | 420/0.254mm | |
| Strand Dia. | | | | 6.40mm | |
| Insulation | | | | XLPE | |
| Nom.Thickness | | | | 1.52mm | |
| Min.Thickness | | | | 1.37mm | |
| Insulation Dia. | | | | 9.70±0.40mm | |
| Insulation colour | Grey |
| Jacket | | | PVC |
| Nom.Thickness | | | 0.76mm |
| Min.Thickness | | | 0.61mm |
| Jacket Dia. | | | | 11.50±0.40mm | |
| Color | | | Black |
| | | | |
| | | | |
Conductor : stranded, tinned or bare copper
Construction
Insulation:XLPE
black cores with continuous white numbering (also available in other colours on request)
GN-YE conductor, 3 cores and above in the outer layer
Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar
Jacket: FRPE
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL3386
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature: -40~105℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
