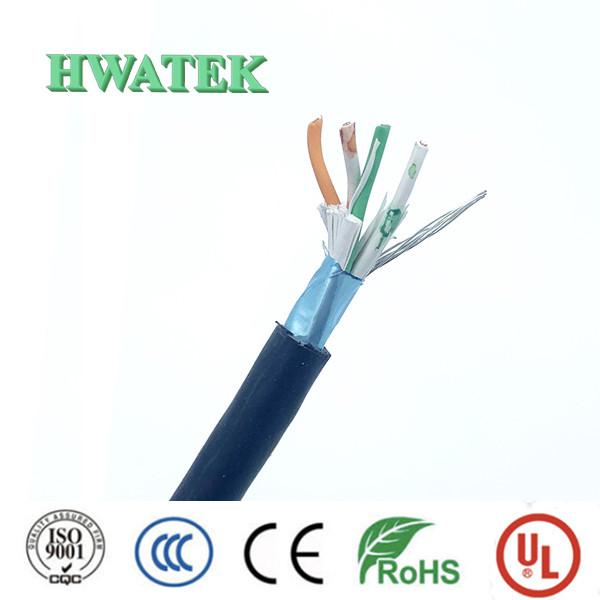

UL 21414 Tinned Copper Stranded 4C×22 AWG XLPE Jacket 300V 150℃ Shield multicore Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : VW-1
Tensile strength:≥13.79MPa Elongation:≥300%
Aged condition:180±1℃×168h
Percent of original tensile strength: ≥80%
Percent of original elongation: ≥80%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | 4C×22AWG(7/0.254T) |
| CONDUCTOR | Material | Tinned copper stranded |
| Size | 7/0.254mm |
| O.D.(Ref) | 0.76mm |
| INSULATION | Material | XLPE |
| Min.average thickness | 0.38mm |
| Min.thickness at any point | 0.33mm |
| O.D. | 1.50±0.10mm |
| CABLING | Material | Al-mylar |
| JACKET | Material | XLPE |
| Min.average thickness | 0.76mm |
| Min.thickness at any point | 0.61mm |
| O.D. | 5.80±0.25mm |
Insulation:XLPE
Conductor : Tinned copper stranded
Construction
Insulation: 1.yellow 2.yellow 3.red&gray 4.black 5.black
Jacket: Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:NOUL, custom-made
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: 150℃
Flame: VW-1
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS |
| Rated voltage:300V |
| Rated temperature:150℃ |
| Max. DC conductor resistance(20℃): 59.4Ω/km |
| Voltage withstand test:AC 2.0kV/1min |
| PHYSICAL PROPERTIES |
| Tensile strength: | ≥13.79MPa |
| Elongation: | ≥300% |
| Aged condition: | 180±1℃×168h |
| Percent of original tensile strength: | ≥80% |
| Percent of original elongation: | ≥80% |
| Flame test: | | | VW-1 |
